The garage is the most popular location for a home golf simulator — and for good reason. Most garages have the ceiling height, depth, and flexibility to fit a full setup without sacrificing your living space. With the right layout and equipment choices, your garage can become a genuinely great indoor golf studio. Here's everything you need to know to do it well.
Garage Layout Options
How you position your simulator in the garage matters as much as what equipment you buy. Here are the three most common approaches.
🏠

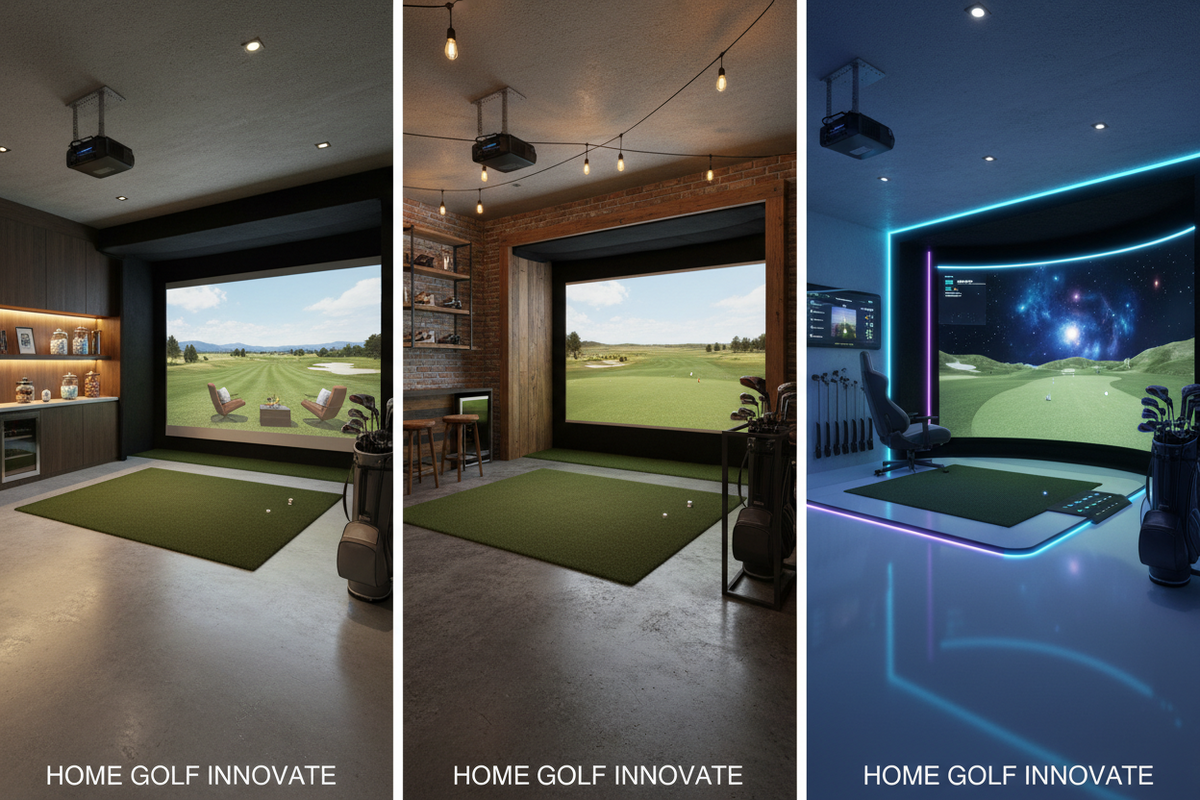

Centered setup facing the back wall
The simulator faces the back wall of the garage, centered in the space. The car parks in front and the sim takes the rear third of the garage. Most popular layout — maximizes depth and gives comfortable side clearance for your swing.
✓ Best depth, good width, easy projector mounting
⚠ Requires 16–20 ft of garage depth minimum
↔️
Side-wall setup
The simulator is positioned along one side wall, with the screen facing across the width of the garage rather than toward the back. Works well in shorter garages that don't have enough depth for the standard orientation.
✓ Works in shorter garages, still allows car access
⚠ Width becomes depth — need 16+ ft wide garage
📐
Dedicated simulator corner
A permanent simulator built into one corner of the garage, usually with a retractable screen or compact enclosure. The rest of the garage remains usable for parking, storage, or other activities. Common in 2-car garages.
✓ Garage stays functional, setup always ready
⚠ Needs a 2-car garage for enough clearance
Measuring Your Garage
Before selecting any equipment, measure your garage carefully. These are the numbers that determine everything else.
Ceiling Height
9–10 ft
Measure at your swing spot — not the center
Width
10–16 ft
12 ft minimum for a comfortable swing
Depth
14–20 ft
16 ft gives good screen distance
⚠️ The Garage-Specific Tech Warning
Garages often have metal framing, steel overhead doors, and corrugated metal walls — all of which can interfere with Doppler radar launch monitors (Garmin, FlightScope). If your garage has significant metal construction, we strongly recommend a camera-based system like SkyTrak+, Foresight GC3, or Uneekor. Camera systems are unaffected by metal interference — they just see the ball.
Recommended Garage Simulator Equipment
📡
Launch Monitor
For garages with metal construction: SkyTrak+ ($2,995) or Foresight GC3 ($6,999) — camera-based, unaffected by metal. For open garages with minimal metal: Garmin R50 ($1,699) is a great plug-and-play option.
🖥️
Impact Screen
Triple-layer screens are recommended for garages — you'll be hitting hard and often. A good screen absorbs repeated shots without creasing or degrading image quality over time.
🏗️
Enclosure Frame
A full enclosure is especially important in a garage — stray shots can easily travel toward cars, storage, or windows. Side barriers and a top barrier are essential. Size to fit your garage width with a few feet of clearance on each side.
⛳
Hitting Mat
Garage floors are hard concrete — a quality mat with proper cushioning is even more important here than in carpeted rooms. Budget $300+ for a mat with a proper insert that protects your joints on every swing.
📽️
Projector
Mount to the ceiling behind the hitting area. Garages often have exposed ceiling joists — mount the bracket between joists for a solid, secure installation. Short-throw, minimum 3,500 lumens. Garage lighting can be harsh — brighter is better.
Finishing Your Garage Golf Studio
The equipment gets you playing. These finishing touches turn a functional setup into a space you actually want to spend time in.
🟩
Turf Flooring
Artificial turf tiles transform the look of a garage simulator instantly. Easy to install on concrete, easy to remove if needed. Cover just the hitting area or the whole sim space.
💡
Lighting
Harsh overhead fluorescent lights cause screen glare. Replace with warm LED downlights positioned away from the screen projection path. Dimmer switches give you control over the ambiance.
🌡️
Climate Control
Garages can get very hot in summer and very cold in winter. A portable heater or mini-split makes the space usable year-round. Insulating the garage door also helps significantly.
🔊
Sound & Storage
A Bluetooth speaker connected to your simulator PC adds immersion. A bag stand, ball basket, and wall hooks for equipment keep the space tidy and organized.
Why the Garage Works So Well
🕐
Always accessible
Walk out from the house and swing. No travel, no tee times, no weather excuses.
📐
Right dimensions
Most two-car garages have 9–10 ft ceilings and 20+ ft depth — perfect for a full setup.
🏠
Doesn't take living space
The simulator doesn't compete with the rest of the house. Your family appreciates this.
📈
Easy to expand
Start small, grow over time. The garage can accommodate a full premium studio as your budget allows.
