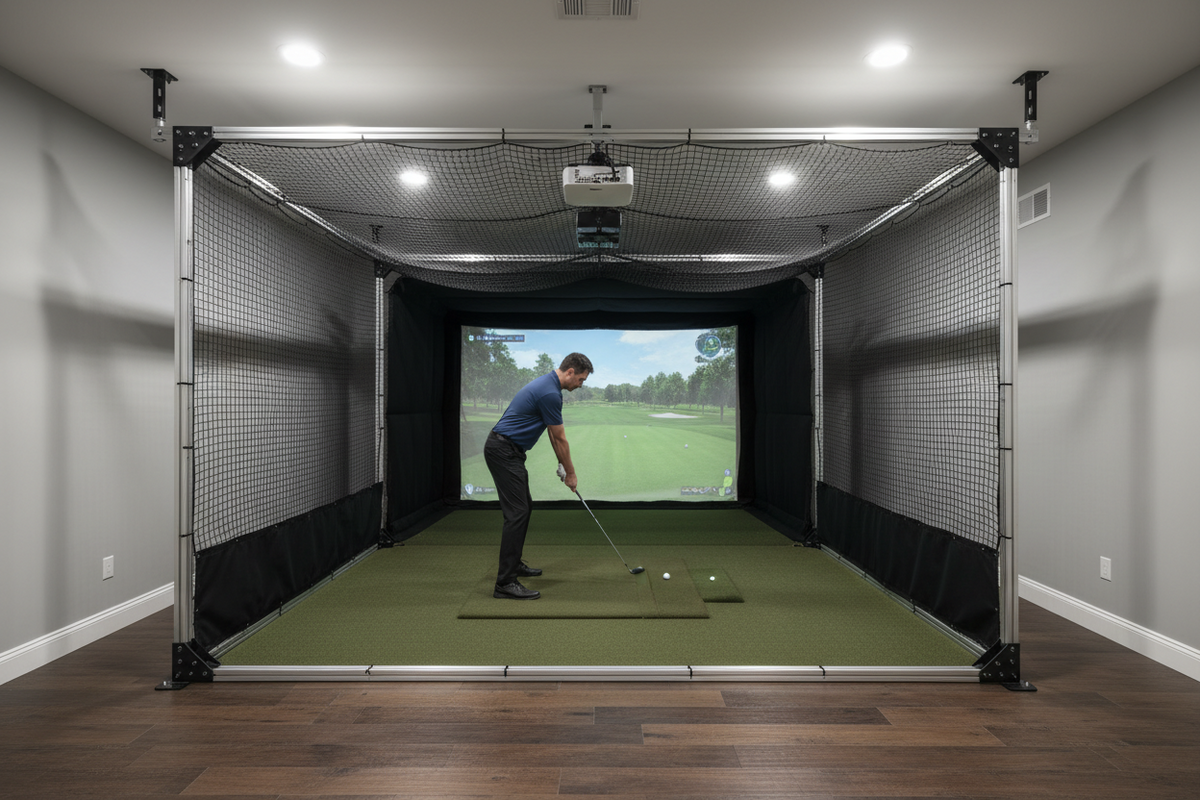

A golf simulator enclosure is the frame system that holds everything together — the screen, the side barriers, and the hitting area. It's not the most glamorous part of the build, but choosing the right one affects safety, image quality, and how professional your setup looks and feels. Here's what you need to know.
Why an Enclosure Matters
🛡️
Safety
Keeps golf balls contained in the hitting area. Protects your walls, windows, TVs, and anything else in the room from wayward shots.
🖼️
Image quality
A properly tensioned screen mounted in a solid frame produces a flatter, crisper projected image. A sagging or poorly mounted screen shows creases and distortion.
🏌️
Immersion
Side barriers block outside distractions and light spill. The enclosure frames the screen like a TV — your eye naturally focuses on the course ahead.
Types of Enclosures
Not all enclosures are the same. Here are the four main types and when each makes sense.
A complete frame system with top bar, side uprights, and optional side barrier curtains. The screen mounts inside the frame and is held under tension. Most home simulator packages include this type.
✓ Complete containment — top, sides, screen all covered
✓ Screen stays properly tensioned
✓ Professional finished appearance
○ More permanent — takes more space
→ Best for: Most home simulator setups. The standard choice.
Built from PVC pipe, steel conduit, or unistrut channel — whatever you source locally. Custom-sized to your exact room dimensions. Popular with DIY builders who have non-standard spaces or want to save money on the frame.
✓ Fully custom dimensions
✓ Lowest cost option
○ Takes more time and planning to build
○ Less polished finish than commercial frames
→ Best for: DIY builders, non-standard room sizes, tight budgets.
A retractable screen system that mounts to the ceiling and rolls up when not in use — reclaiming the room for other activities. Ideal for garages or bonus rooms that need to serve multiple purposes. Most systems deploy fully in under a minute.
✓ Room remains usable when sim is stored
✓ Clean, minimal ceiling-mounted installation
○ Usually no side barriers — less ball containment
○ More expensive than standard frame
→ Best for: Multi-use garages or rooms where space is shared.
Heavier gauge tubing, reinforced connection points, and higher load ratings. Built for commercial facilities or home installations that will see daily heavy use. Often includes acoustic panels or foam padding on the uprights for added safety.
✓ Built for high-frequency daily use
✓ More durable over long term
✓ Extended warranty typically available
○ Heavier and more expensive
→ Best for: Commercial venues, coaching studios, dedicated home golf rooms.
Choosing the Right Enclosure Size
Enclosures come in standard widths. Match to your room width minus the clearance you need on each side for a comfortable swing.
10 ft enclosure
12 ft room
9.5 ft screen
Compact spaces
12 ft enclosure
14 ft room
11.5 ft screen
Most popular size
14 ft enclosure
16 ft room
13.5 ft screen
Large rooms, wider screens
Custom width
Any
Any
DIY or commercial builds
Installation Tips
1
Mark the footprint before you assemble
Use tape to mark where the enclosure will sit on the floor. Step inside and take a few practice swings to confirm you have comfortable clearance on all sides before committing.
2
Level the uprights carefully
An out-of-plumb frame puts uneven tension on the screen and causes the image to distort. Use a level on each upright during assembly and adjust the feet before locking everything down.
3
Tension the screen evenly
Attach the screen to the frame gradually, working from the center outward on each edge. Even tension prevents creases and keeps the projected image flat. Don't over-tension — tight enough to remove wrinkles, no tighter.
4
Add side barriers before your first shot
Don't skip the side nets or curtains — even with a good swing you'll hit off-axis shots. Side barriers are what protect your walls, windows, and equipment from the shots you didn't mean to hit.
Buying Tips
📏
Size down if you're unsure
If you're between enclosure sizes, go smaller. A 10 ft enclosure in a 14 ft room gives you comfortable side clearance. A 14 ft enclosure in a 14 ft room leaves you no room to move.
🔗
Buy enclosure and screen together
Screens and enclosures need to be sized to match. Buying them from the same manufacturer or as a bundle ensures the mounting points align and the tension system works correctly.
⚖️
Check the weight rating
If you're mounting a projector or lighting to the enclosure frame, check that the frame is rated to handle the additional load. Most home enclosures aren't designed for overhead equipment without reinforcement.
