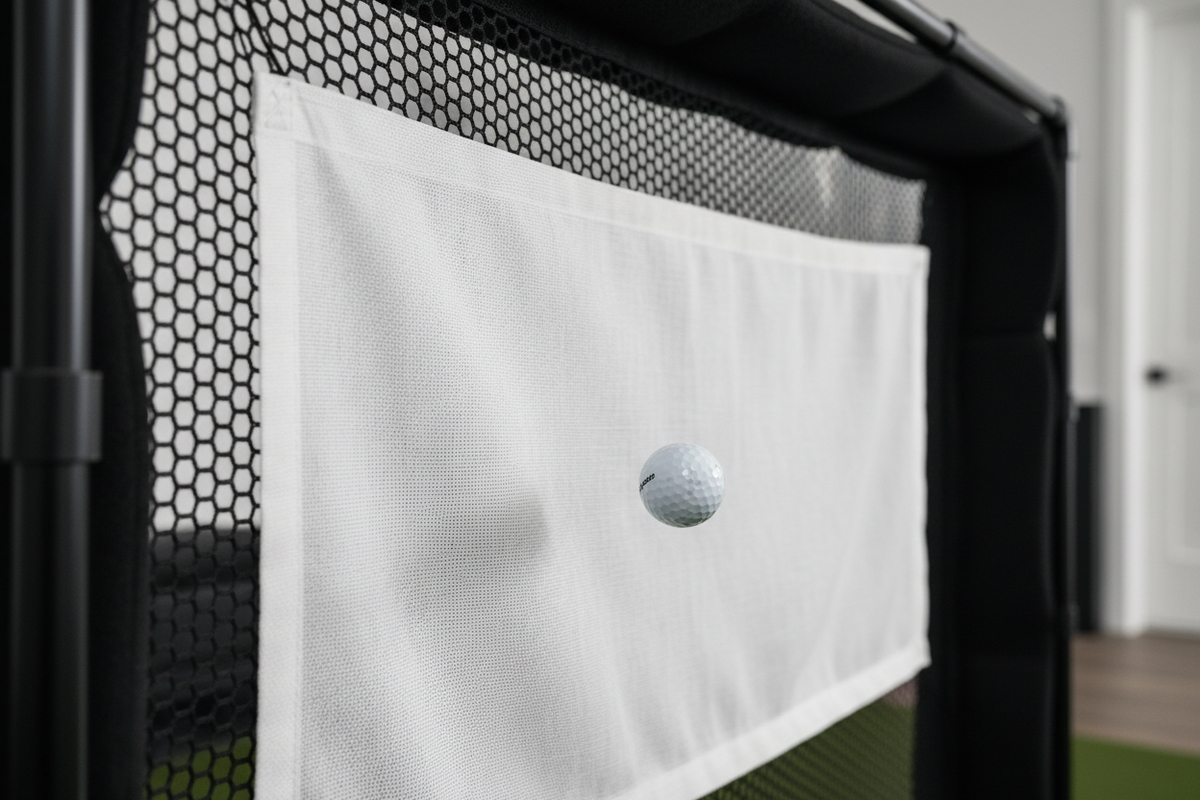

The impact screen is the centerpiece of any golf simulator — the surface you hit into on every single shot and the canvas the virtual course is projected onto. Getting this choice right affects both safety and how good your simulator looks. Here's everything you need to know.
Two Jobs, One Screen
Unlike a regular projector screen, an impact screen has to do two very different things simultaneously — and do both well.
🛡️
Stop the Ball
Absorb shots traveling 100–180 mph repeatedly, without tearing, creasing, or bouncing balls back dangerously at the golfer.
🖼️
Display the Course
Provide a flat, taut surface that shows the projected image crisply without hot spots, distortion, or light bleed-through.
These two requirements pull in different directions — a surface thick enough to absorb ball impact tends to diffuse the projected light. Good screens are engineered to balance both. Cheap screens compromise one or both.
Single, Dual, and Triple-Layer Screens
Most impact screens are described by their number of layers. Here's the honest breakdown of what each level actually gives you.
Single-layer
Single-Layer Screen
One layer of impact-resistant fabric. Cheapest option — works, but shows wear faster, has higher risk of tearing under repeated heavy shots, and image clarity is limited. Ball bounce-back can be more pronounced, which creates a mild safety risk.
Best for: Very occasional use or strict budget builds. Upgrade when you can.
Dual-layer
Dual-Layer Screen
Two layers — an impact-absorbing backing and a projection surface on the front. Better durability, reduced bounce-back, improved image quality. The standard for mid-range home setups. Handles regular daily practice without issues.
Best for: Most home simulator users. The practical sweet spot.
Triple-layer
Triple-Layer Screen
Three layers — typically a ballistic impact layer, a dampening middle layer, and a high-gain projection surface. Maximum durability, minimal bounce-back, and the clearest image quality. Used in commercial facilities and serious home studios. Worth the extra cost if you're hitting daily.
Best for: Daily heavy use, premium builds, commercial environments. Our recommendation for most complete setups.
Aspect Ratio — 4:3 vs 16:9
Impact screens come in two common aspect ratios, and this affects how the course image fills the screen.
4:3 Aspect Ratio
Traditional — most common in simulators
The classic square-ish format. Most simulator software is optimized to fill a 4:3 screen without black bars or cropping. Easier to find enclosures designed around this ratio.
✓ Best software compatibility
✓ Most enclosures designed for 4:3
✓ Standard in home simulator packages
16:9 Aspect Ratio
Widescreen — more cinematic feel
Wider format that feels more like a TV or cinema. Some software platforms support 16:9 natively — check compatibility with your launch monitor and software before choosing this format.
✓ More immersive, cinematic feel
✓ Wider field of view
○ Not all software fills 16:9 without black bars
Screen Size Guide
Screen size is determined by your enclosure width and room dimensions. Bigger screens are more immersive — but only if your room can support the projector throw distance needed to fill them.
8–9 ft
10–11 ft room
4–5 ft
Compact, functional
10–11 ft
12–13 ft room
5–6 ft
Most popular home size
12–13 ft
14–15 ft room
6–7 ft
Immersive, great experience
14–16 ft
16+ ft room
7–9 ft
Commercial / premium studio
Installation Tips
1
Tension evenly from the center outward
Attach the screen to the enclosure frame gradually — start at the center of each edge and work toward the corners. This distributes tension evenly and prevents creases that distort the projected image.
2
Taut but not over-stretched
The screen should be flat with no visible sag or wrinkles — but don't pull it so tight that you're stretching the material. Over-tensioning puts stress on the attachment points and can cause premature tearing at the edges.
3
Leave 12–18 inches behind the screen
The screen needs space behind it to absorb ball impact. A screen mounted flush against a wall has nowhere to go on impact — it'll wear faster and bounce balls back harder. At least a foot of clearance behind the screen significantly extends its life.
4
Buy the screen and enclosure together
Screens and enclosure frames need to match. Buying them from the same manufacturer ensures the attachment points align and the screen tensions correctly in the frame. Mismatched systems often cause persistent installation headaches.
Common Screen Mistakes
🚫
Using a regular projector screen
Standard projector screens are not designed for ball impact. Even one shot will tear or permanently damage a regular screen. Always use a purpose-built impact screen.
🚫
Mounting flush against a wall
A screen with no clearance behind it has no room to absorb impact. The ball force transfers directly to the wall and back — causing premature screen wear and harder ball bounce-back.
🚫
Buying the wrong aspect ratio
A 16:9 screen with software optimized for 4:3 produces black bars or a cropped image. Check your software's aspect ratio support before choosing your screen format.
🚫
Choosing size before checking projector throw
A large screen requires more projector throw distance. If your projector can't produce a large enough image at its ceiling mount location, the image won't fill the screen. Always calculate throw distance first.
